Flat-Back Turf Tiles
Heavy Duty Turf Protection
Highest rated load capacity available in the market
Application

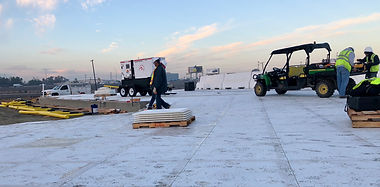

Flat-back Tile is ideal for protecting sensitive ground on football fields, soccer pitches, baseball fields, golf courses and parks. It can be used on natural grass and synthetic turf fields. Our design has the highest load rating of any matting system on the market making it ideal for temporary roadways with use for heavy equipment.

Features
Each tile is equipped with a textured surface for traction and air holes for drainage and gas exchange. The specifically engineered interlocking tiles ensure a completely even, usable surace that is free of trip hazards. Our non-lit and LED Turf Tiles are linkable. The overlap design allows for consistent natural light transmission throughout the entire tile, where others do not. Installation and removal are performed quickly and easily with just a small team using light tools. Tiles are manufactured and assembled in the USA.
Built in expansion joint
Air holes for gas exchange
Optimal translucency
Highest weight load capacity

Technical Data
Material
Polyethylene (HDPE)
Dimensions
- Loading size: 1.22 x 1.22 m (48 x 48 in)
- Cover size: 1.1 x 1.1 m (43.3 x 43.3 in)
- Height: 0.042 m (1.8 in)
Weight
13.61 kg (42 lb) per tile
Weight capasity
152,000 PSF
Color
Transparent white, or Gray
Surface
Slighty textured
Accessories
Hand tool, Ramps
Transport
25 tiles per pallet.
